On November 10, 2015, Datongda Holdings, a leading semiconductor component distributor dedicated to the Asia-Pacific market, announced that it has launched Toshiba's complete solution for smartphone applications, including Toshiba's higher performance. CMOS image sensor, digital camera module, FRC Plus image processing technology, Near-distance wireless transmission technology TransferJetTM, high efficiency and fast wireless charging solution, Near Field Communication (NFC) chipset, Bluetooth & Wi-Fi integrated single chip , ApP-LiteTM (Lite Application Processor) and interface bridge chip.

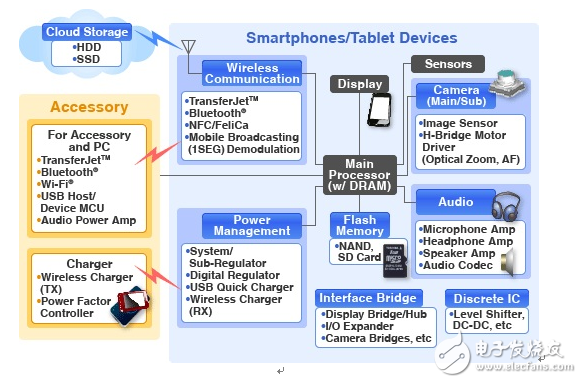

Figure 1 - System diagram of Toshiba's system for smartphone applications
CMOS image sensor IC
A CMOS area array image sensor is an integrated circuit (IC) that converts light into an electrical signal. Such sensors contain an array of photodiodes with multiple CMOS transistors per pixel.
To meet the needs of market miniaturization and higher performance, Toshiba has developed CMOS area array sensors, such as microlens and photodiode optimization. Toshiba CMOS area array sensors have multiple resolutions from VGA to over 10 million pixels, and pixel pitches from 1.12μm to 5.6μm, suitable for smartphones, tablet computers, surveillance cameras, and car cameras.
application
Toshiba offers a wide range of CMOS area array image sensors for a wide range of applications, including tablet computers, cell phones and handheld products.

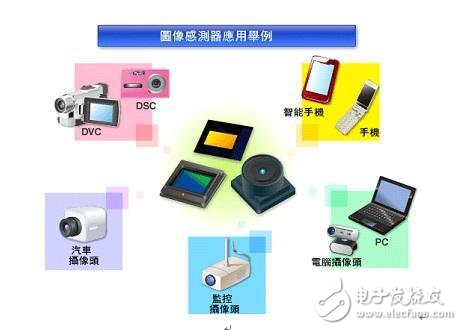

Figure 2 - Toshiba CMOS sensor application case of Grand Alliance
· 1.12 μm to 5.6 μm pixel pitch, VGA to over 10 million pixels
· High dynamic range (HDR) and color noise reduction (CNR)
· High sensitivity back side illumination (BSI) image sensor
· Modules, packages and dies are available.

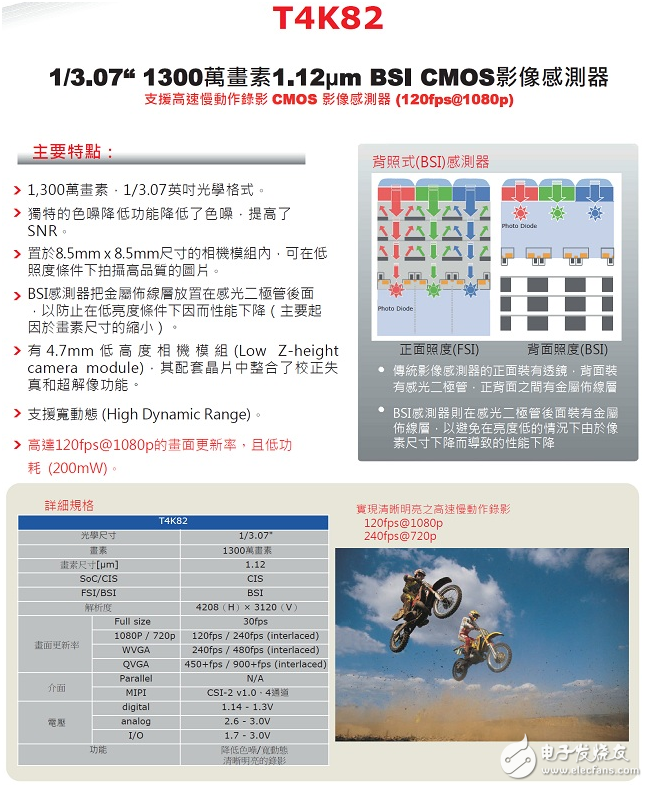

Figure 3 - Toshiba T4K82 1/3.07" 13 million pixel 1.12um BSI CMOS sensor
Short-range wireless transmission technology TransferJetTM compliant IC

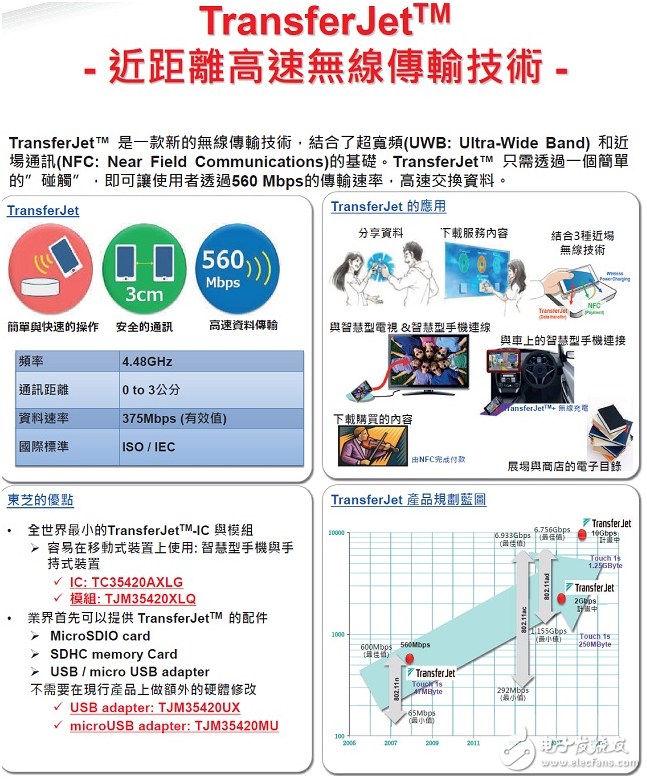

Figure 4 - Toshiba's TransferJetTM IC for smartphone applications

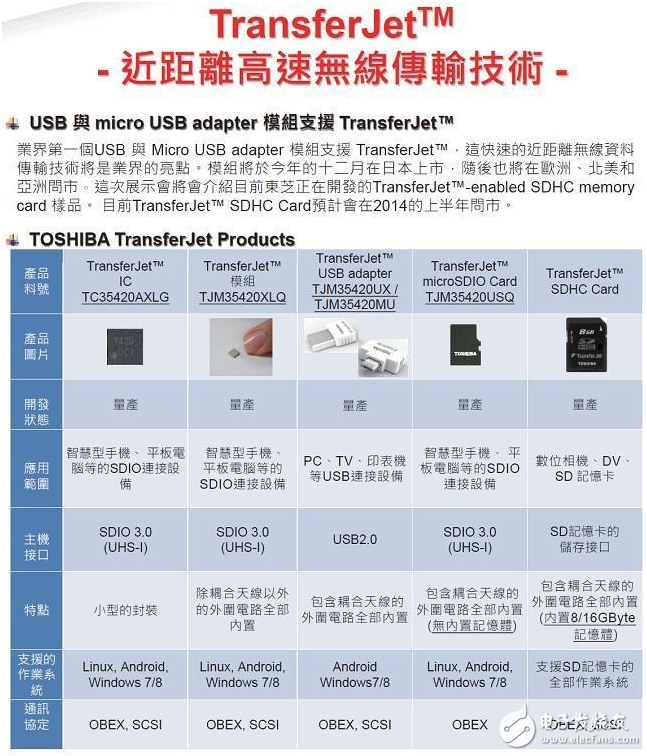

Figure 5 - Toshiba's TransferJetTM IC product line for smartphone applications
Wireless charging power IC

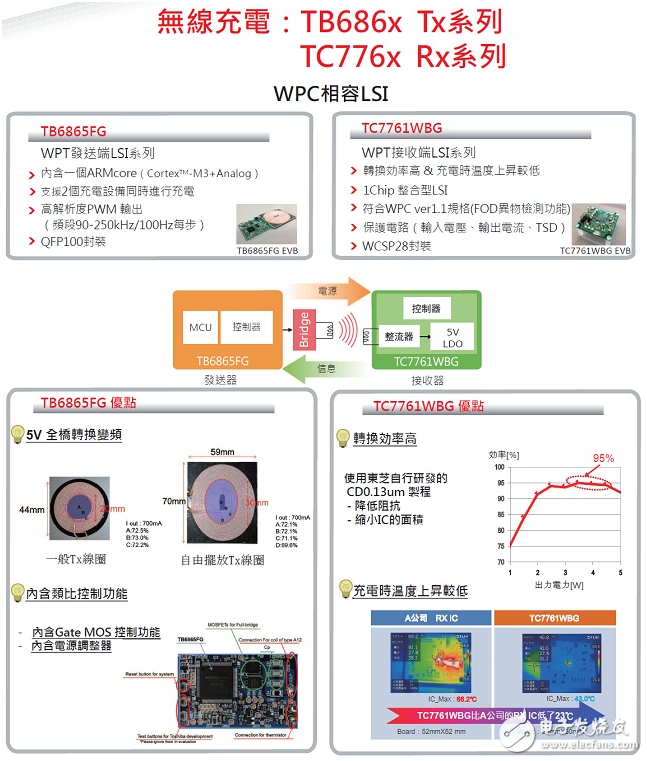

Figure 6 - Introduction to Toshiba's wireless charging power IC for smartphone applications

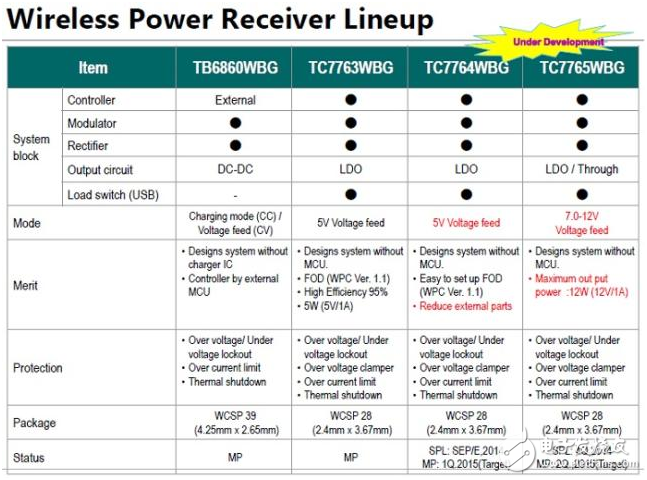

Figure 7 - Toshiba's wireless charging power IC product line for smartphone applications
Near Field Communication (NFC) chipset

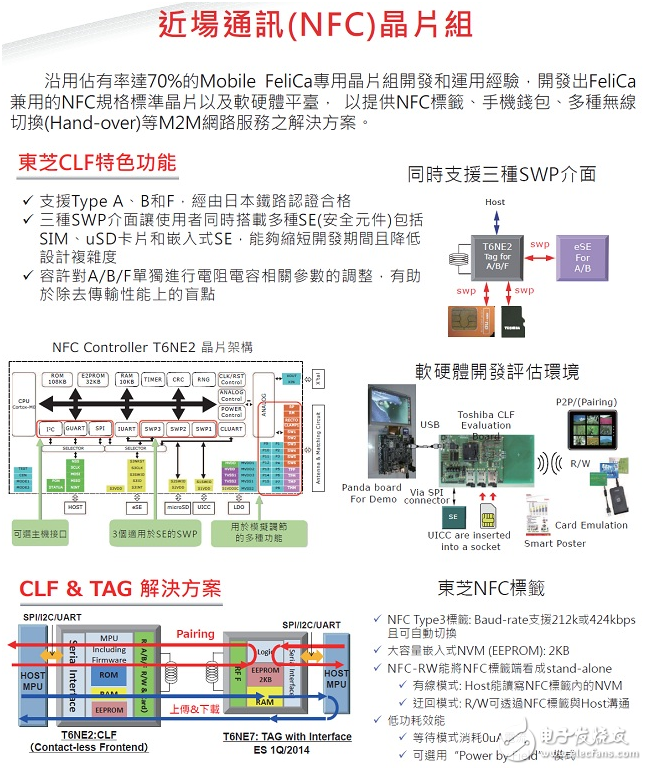

Figure 8 - Introduction to the NFC module of the Toshiba related to smartphone applications
BluetoothTM Series Integrated Single Chip

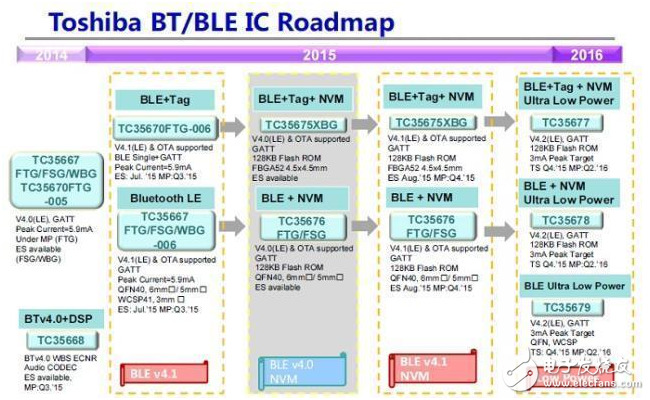

Figure 9 - Toshiba's BluetoothTM series integrated single-chip product line for smartphone applications
At present, Toshiba's Bluetooth IC product portfolio includes Bluetooth chip TC35661 and low-power Bluetooth chip TC35667 and low-power Bluetooth and NFC function chip TC35670.
application
· Audio equipment
· Mobile device
· Wearable device
· Health care device
· Action around
· remote control
Interface bridge chip
With the higher resolution and image quality of multimedia content, it is inevitable to receive or send a large amount of data at high speed on peripheral devices such as video cameras and liquid crystal displays, because only the main processing such as baseband and application processor can be satisfied. The job requirements of the device. Toshiba has introduced an interface bridge chip called "Mobile Peripheral Device (MPD)" that supports high-speed data transfer protocols such as MIPI, LVDS, Display Port and HDMI. Toshiba's MPD not only transmits data at high speed, but also bridges the main processor and peripherals of different interfaces. Toshiba also introduced a broad portfolio of peripherals such as I/O expansion devices and SC card controllers.

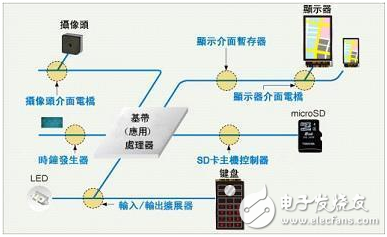

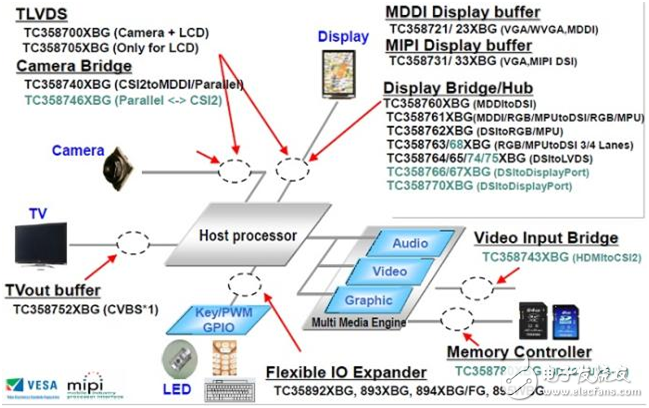

Figure 10 - Toshiba's interface bridge chip for smartphone applications
Toshiba's bridge and buffer ICs support a variety of serial data transfer protocols such as MIPI®, MDDI, LVDS, Display Port and HDMI for easy cell phone design.
Input/output expander ICs easily enhance the input/output capabilities of existing systems, including GPIOs, keyboards, LED controllers, and timers. The expander has a wide range of applications, including mobile phones, digital cameras, printers and the like.
In addition, Toshiba is also developing various peripheral processor peripheral products, such as SD card host controllers that can transfer data to SD cards at high speed.
Figure 11 - Toshiba's I/O interface combination for interface bridge chips for smartphone applications
